Type 06002 - gastight

Datasheet ID: CR_06002
Field of application chevron-down

Applications:

Provided as safety device for protection against thermal expansion in pipeworks and parts of facilities.

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +150°C / +302°F (423K), suitable for horizontal installation

Description chevron-down

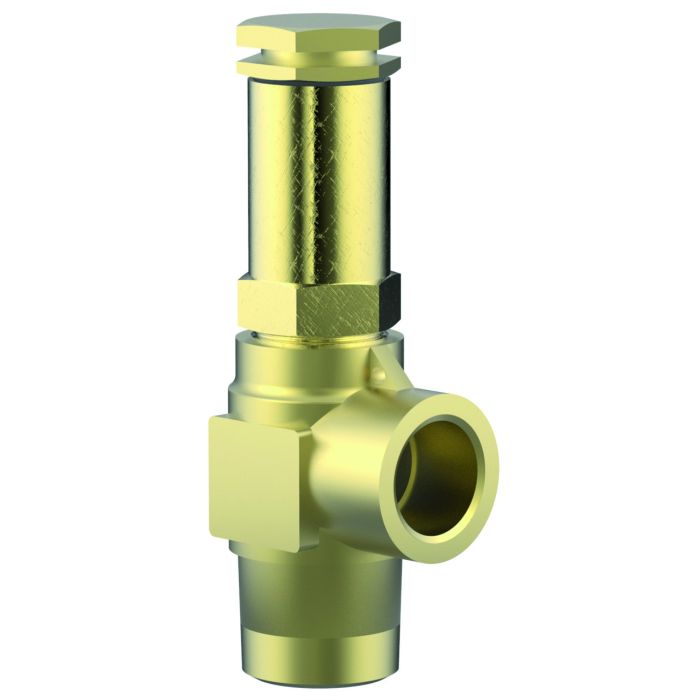

Cryogenic Safety Valves, angle type, brass, PN63, type tested TÃœV-SV.1048. S/G

Standard Safety Valve,

gastight, closed bonnet

with carbon filled PTFE valve seal

Outlet: female thread Rc 3/8 acc. to ISO 7/1

"cleaned and degreased for oxygen service"

Part No. 06002.X.0020

Inlet: male thread type R (BSPT) acc. to ISO 7/1

Part No. 06002.X.2020

Inlet: male thread type G (BSPP) acc. to ISO 228/1

Part No. 06002.X.5020

Inlet: male thread NPT acc. to ANSI B 1.20.1

Available options - on request only:

· with installed elbow at the outlet

Certificates chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
ASME Code (ASME Code Section VIII) chevron-down
Canadian Registration Number (CRN) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
TÜV Verband (Approval mark number) chevron-down
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
License of Special Equipment (China) (TS) chevron-down
Gas Cylinder Rules 2016 (India) (GCR 2016) chevron-down
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Declarations of Conformity chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
More Information
Type (Series) 06002
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_06002

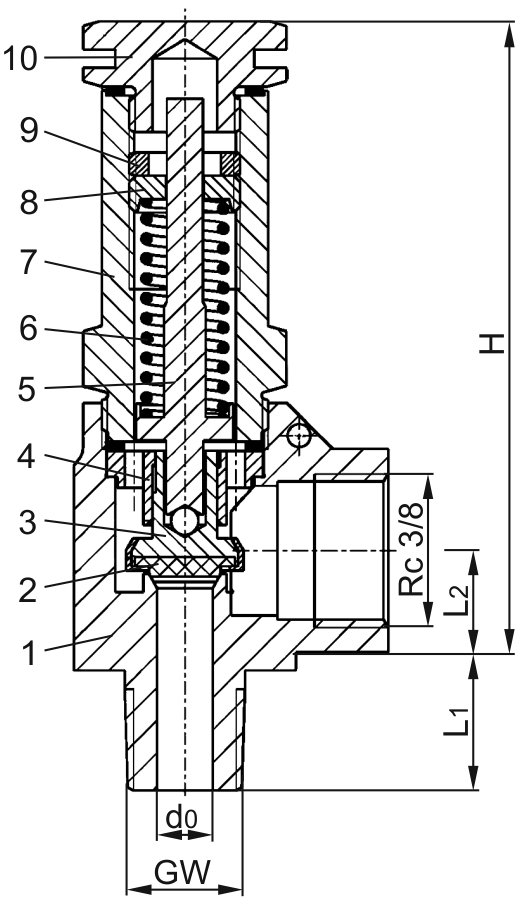

Materials

Materials

DIN EN

ASME/ASTM

1

Body

CW617N

EN12165 CW617N Code Case 1750

2

Valve seal

PTFE / Carbon filled (25%)

3

Disc

CW452K

B 103 UNS C51900

4

Guide plate

CC493K

SB 505 C93200

5

Stem

CW614N

EN12164 CW614N Code Case 1750

6

Spring

1.4571

A 313 Grade 316Ti

7

Bonnet

CW614N

EN12164 CW614N Code Case 1750

8

Spring clamp

CW614N

EN12164 CW614N Code Case 1750

9

Thread ring

CW614N

EN12164 CW614N Code Case 1750

10

Cap

CW614N

EN12164 CW614N Code Case 1750
Versions

Type 06002

Technical data

Nominal size

GW

1/4

3/8

1/2

Orifice

d0

6.0

6.0

6.0

Dimension code

.X.

0200

0300

0400

Set pressure range

bar

1.0-55.0

1.0-55.0

1.0-55.0

Height

H

70

70

70

Length

L1

13

15

17

Length

L2

13

13

13

Weight

ca. kg

0.18

0.20

0.22

Coefficient of discharge

αw

0.34

0.34

0.34
