Type 08411 - Strainer

Datasheet ID: CR_08411_1
Field of application chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description chevron-down

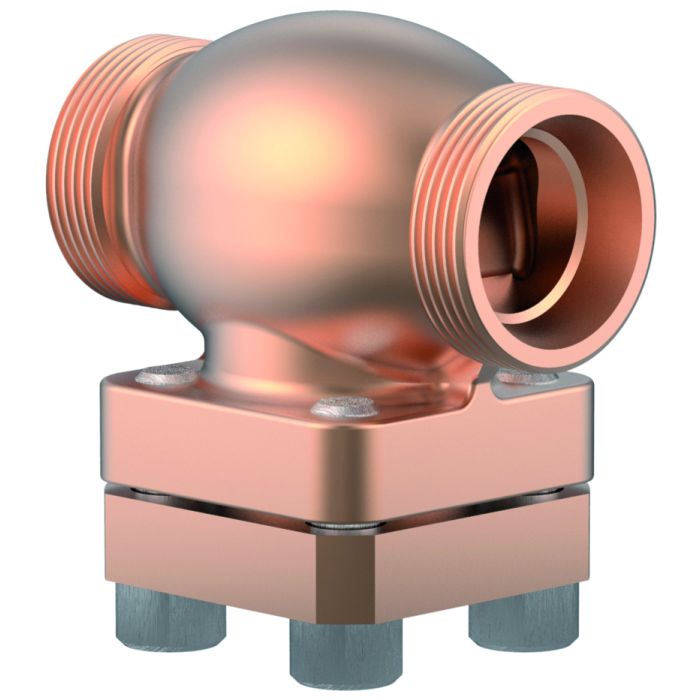

Cryogenic-Strainer, PN50

Bronze body and cap

with strainer screen mesh size 0.25 mm

“cleaned and degreased for oxygen service"

Part No. 08411.X.0001

Male thread for union connection

Available options - on request only:

· other mesh sizes for strainer screen (changed flow coefficient)

· strainer screen in bronze or monel

· sintered filter in bronze or stainless steel in various porosities

Certificates chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Operating Instructions chevron-down
Declarations of Conformity chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
More Information
Type (Series) 08411
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_08411_1

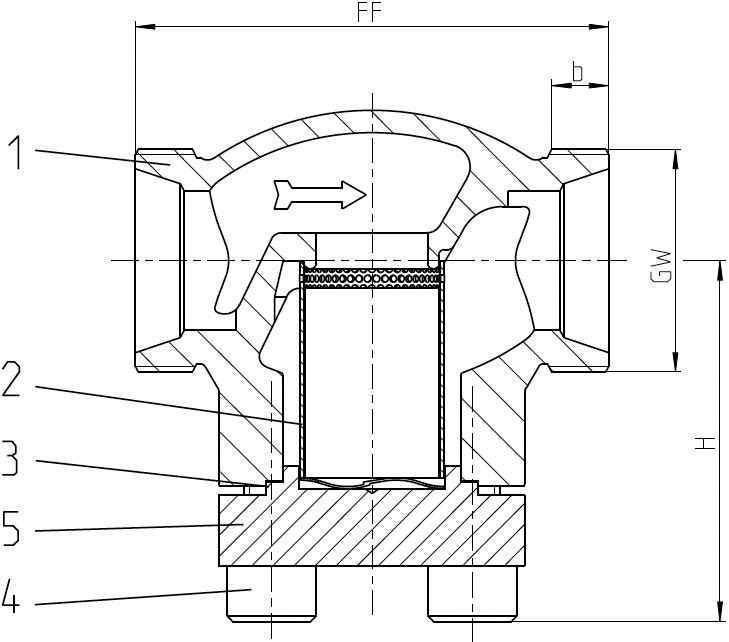

Materials

Materials

DIN EN

ASTM

1

Body

CC491K

B 62 UNS C83600

2

Strainer screen

1.4301

A 240 Grade 304

3

Bonnet gasket

PTFE

4

Bolts

1.4301/A2

A 194 B8

5

Cap

CC493K

B 505 UNS C93200
Versions

Type 08411 - Standard design

Technical data

Nominal size

DN

10

20

32

40

50

Dimension code

.X.

0100

0200

0320

0400

0500

Face-to-face dimension

FF

60

85

115

140

160

Height

H

62

65

76

89

89

Union thread

GW

M26x1.5

M40x2.0

M55x2.0

M65x2.0

M78x2.0

Thread length

b

10

11

14

17

20

Weight

ca. kg

0.6

0.9

1.8

3.1

4.7

Kvs - Value

m³/h

1.5

6.5

14.0

21.0

28.0

Cv - Value

gal/min

1.7

7.5

16.2

24.3

32.4
