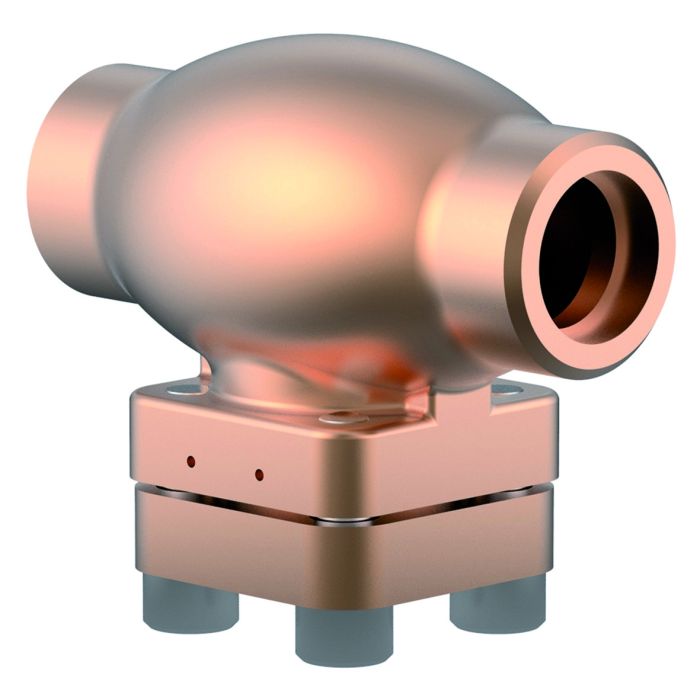

Type 08412 - Strainer
The product shown in the picture may differ from the product sold.
Field of application
Applications:
Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)
Certificates
type-examination for LNG (DIN EN 12567)
Canadian Registration Number (CRN)
Live Stock: Out-Of Stock pcs (ON STOCK)
| Solution | LNG, Air Gases |
|---|---|
| Solution Area | Transport, Storage, Refueling, Processes |
| SKU | CR_08412_1 |
Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Body |
CC491K |
B 62 UNS C83600 |
2 |
Strainer screen |
1.4301 |
A 240 Grade 304 |
3 |
Bonnet gasket |
PTFE |
|
4 |
Bolts |
1.4301/A2 |
A 194 B8 |
5 |
Cap |
CC493K |
B 505 UNS C93200 |

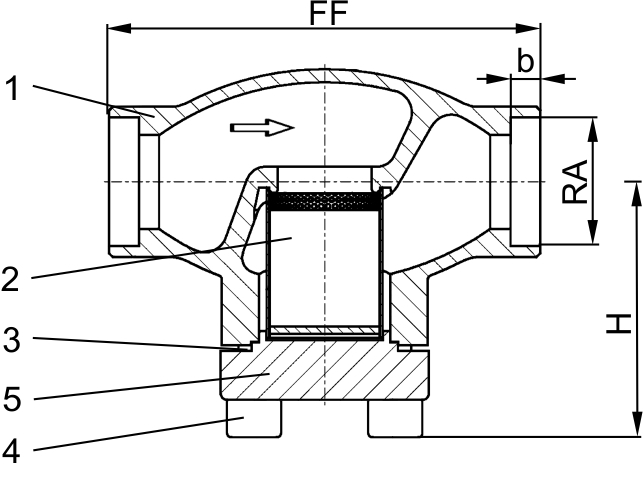

Type 08412 - Standard design |
Technical data |
|||||||
|---|---|---|---|---|---|---|---|---|
Nominal size |
DN |
10 |
15 |
20 |
25 |
32 |
40 |
50 |
Dimension code |
.X. |
X=DNRA, Example: valve DN10 for copper pipe RAø12mm, X=1012 |
||||||
Face-to-face dimension |
FF |
60 |
85 |
85 |
115 |
115 |
140 |
160 |
Height |
H |
62 |
62 |
65 |
69 |
76 |
89 |
89 |
Outside pipe-Ø |
RA |
dependent on order |
||||||
Socket depth |
b |
6 |
6 |
8 |
8 |
10 |
13 |
20 |
Weight |
ca. kg |
0.6 |
0.8 |
0.9 |
1.2 |
1.8 |
3.1 |
4.7 |
Kvs-Value |
m³/h |
1.5 |
3.4 |
6.5 |
9.5 |
14.0 |
21.0 |
28.0 |
Cv-Value |
gal/min |
1.7 |
3.9 |
7.5 |
11.0 |
16.2 |
24.3 |
32.4 |
Product Variants
Filter our product by specific attributes| Name | Connection inlet | Connection outlet | Connection dimension inlet | Connection dimension outlet | CV-Value | Nominal Size | Link to product |
|---|
- ...
- ...
