Type 15C01 - Ball Valve full bore

Datasheet ID: CR_15C01
Field of application chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +65°C / +149°F (338K)

Description chevron-down

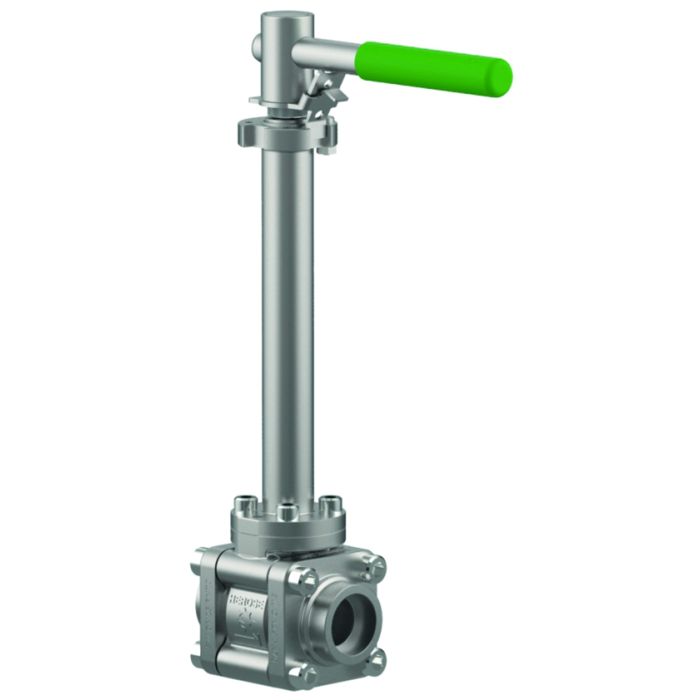

Cryogenic Ball Valve

Unidirectional ball valve to be installed in flow direction with upstream pressure relief hole.

Socket weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Female thread type NPT acc. to ANSI 1.20.1

Female thread type G (BSPP) acc. to ISO 228/1

Marking acc. to EN 1626

Top flange to EN ISO 5211

"¦cleaned and degreased for oxygen service¦"

Available accessories:

· Lock for locking device type 55394.0019.0302

Certificates chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Ukraine (Ukraine) chevron-down
Equipment for explosive atmospheres (ATEX) (2014/34/EU) chevron-down
Data sheets chevron-down
Declarations of Conformity chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
More Information
Type (Series) 15C01
Solution LNG, Air Gases, Industry
Solution Area Transport, Storage, Refueling, Processes, Compressed Air
SKU CR_15C01

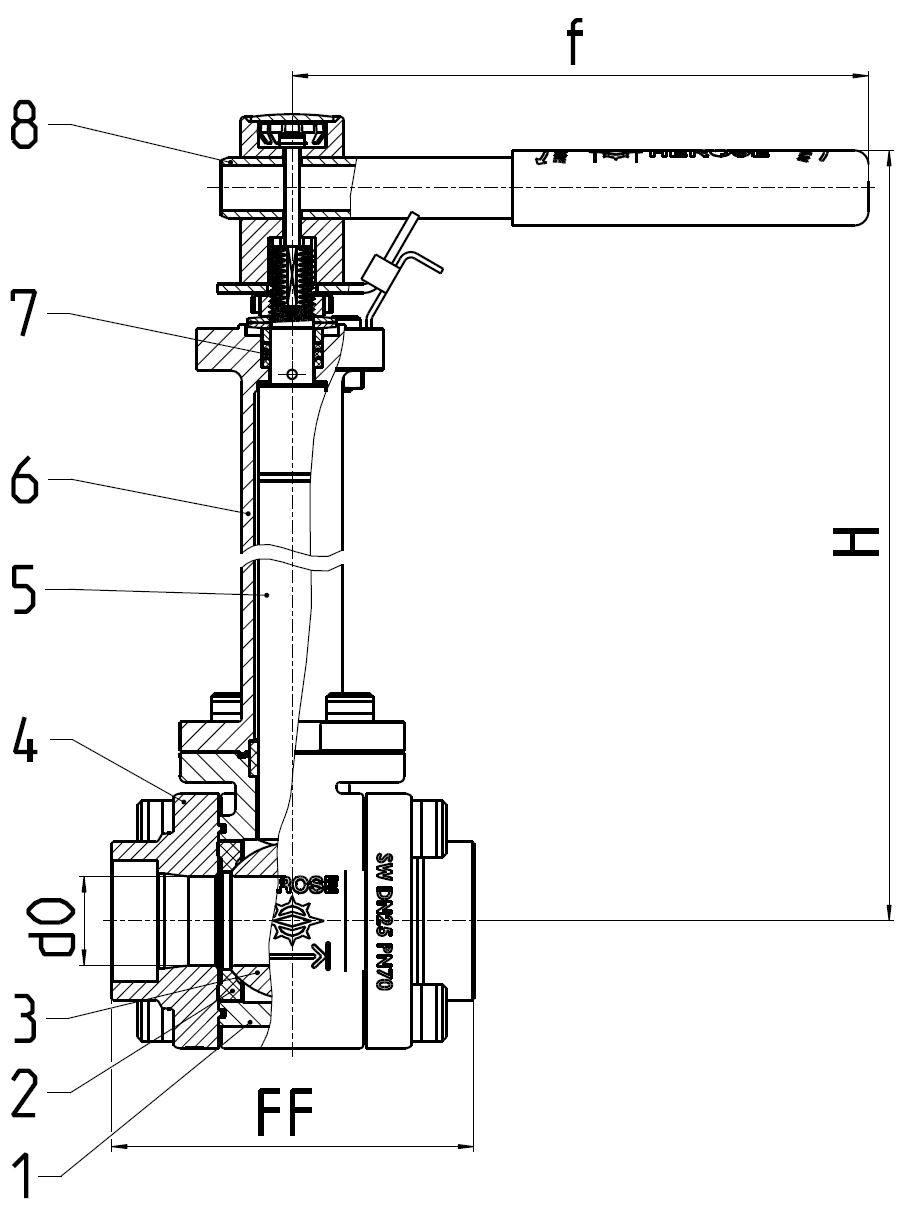

Materials

Materials

DIN EN

ASTM

1

Body

1.4409

A 351 CF3M

2

Ball seal

PCTFE

3

Ball

1.4404

316L S.S.

4

Side connection

1.4409

A 351 CF3M

5

Stem

1.4401

A 479 Grade 316

6

Bonnet extension

1.4409

A 351 CF3M

7

Gland packing

INOFLON M295

8

Lever

1.4301

ASTM A312 TP304
Versions

Technical data - Standard design

Nominal size

[DN]

Height (H)

[mm]

Orifice (D0)

[mm]

Weight

[kg]

Kvs-value

[m³/h]

Cv-value

[gal/min]

Length (f)

[mm]

ISO 5211

10

296

8.0

2.5

5.7

6.6

127

F03

15

296

14.5

2.5

10.7

12.4

127

F03

20

305

19.5

3.1

24.7

28.6

157

F04

25

310

25.0

3.8

32.1

37.1

157

F04

32

376

32.0

6.5

77.9

90.1

240

F05

40

380

38.0

7.3

122.3

141.4

240

F05

50

427

50.0

13.6

124.1

143.7

420

F07

65

496

64.5

29.8

188.6

218.4

462.5

F10

80

592

80.0

44.7

279.8

323.7

600

F10
