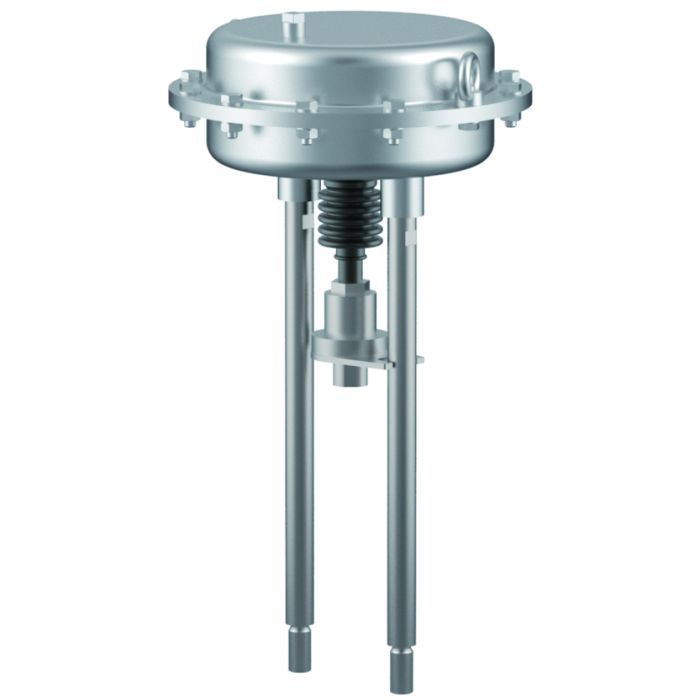

Type 27515 - Pneumatic Actuator - Control Valve

Datasheet ID: CR_27515_3
Description chevron-down

Pneumatic Actuators for Control Valves

Actuator - spring to open, air to close

maximum air pressure for operation 6.0 bar

Actuator coating: Delta Seal GZ (silver-grey)

Corrosion-protection class C5-M acc. to DIN EN ISO 12944

Available options - on request only:

· Pneumatic actuator with override handwheel

Ambient temperature limit: -40°C / -40°F (233K) up to +100°C / 212°F (373K)

Data sheets chevron-down
More Information
Type (Series) 27515
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_27515_3

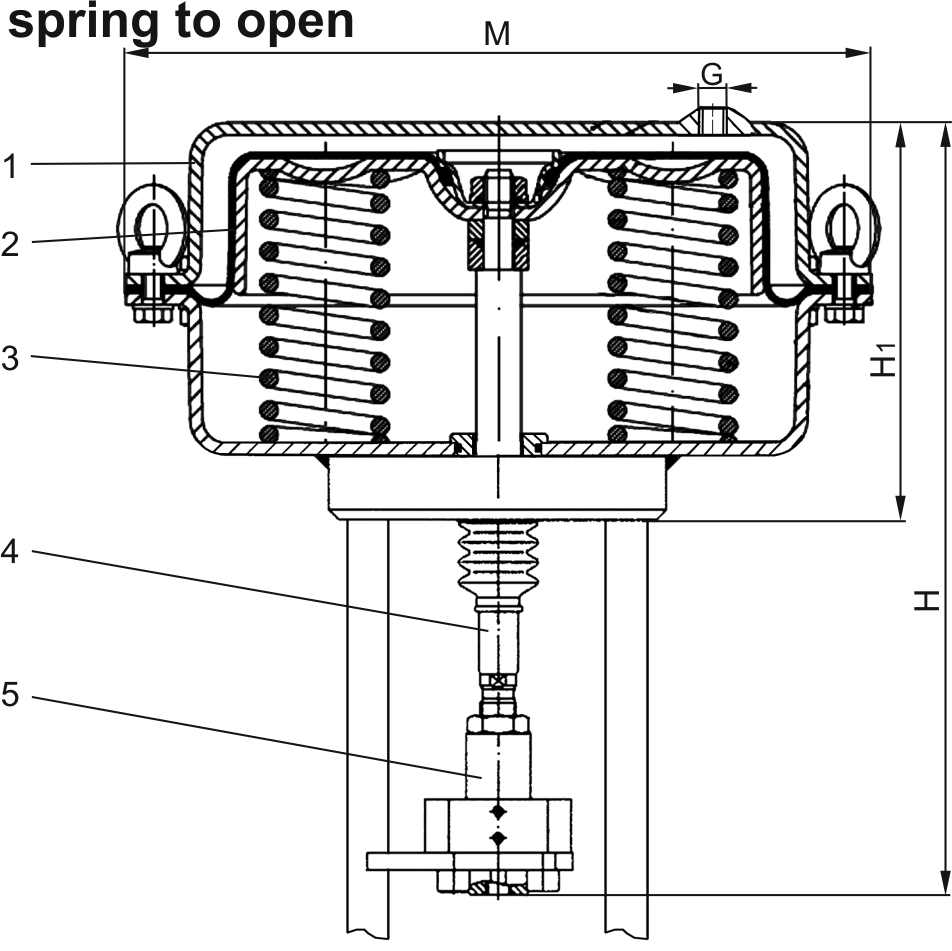

Materials

Materials

DIN EN

ASTM

1

Body

1.0335

A 622 Grade 1008

2

Diaphragm

NBR + tissue

3

Springs

1.4310

A 313 Grade 301

4

Actuator stem

1.4571

A 276 Grade 316Ti

5

Coupling

1.4571

A 276 Grade 316Ti
Versions

Type 27515

Technical data

Part No. Actuator

27515

.DP30.2S06

.DP32.3S02

.DP33.3S02

.DP34.5S02

Diameter Actuator

M

168

250

300

405

Height

H

ca. 244

ca. 240

ca. 300

ca. 375

Height

H1

122

124

166

228

Thread

G

G 1/4"

G 1/4''

G 1/4''

G 3/8''

Diaphragm area

cm²

80

250

400

800

Spring range

bar

0.6 - 1.5

0.2 - 1.0

0.2 - 1.0

0.2 - 1.0

Minimum air pressure

bar

6.0

6.0

6.0

6.0

Regulating lift

mm

20

30

30

50

Weight

ca. kg

5.0

9.0

15.0

45.0
?
