Type 7111 - Diverter-Plug-Valve

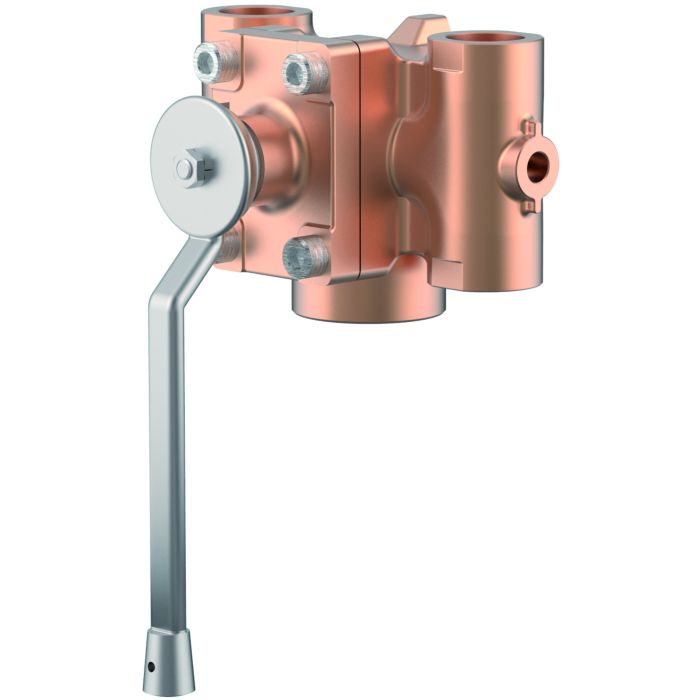

The product shown in the picture may differ from the product sold.
Type 7111 - Diverter-Plug-Valve
Datasheet ID: CR_7111
Field of application
Applications:
Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)
For O2-applications: Up to 60°C / 140°F (333K): maximum oxygen pressure up to 40 bar
From 60°C / 140°F (333K): maximum oxygen pressure up to 25 bar
Certificates
Canadian Registration Number (CRN)
0C20592.5ADD1 - Ontario
0C20592.5NADD1- Nunavut
0C20592.5TADD1- Northwest Territories
0C20592.5YADD1- Yukon
0C20592.50ADD1- Newfoundland Labrador
0C20592.51ADD1 - British Columbia
0C20592.52ADD1 - Alberta
0C20592.53ADD1 - Saskatchewan
0C20592.54ADD1 - Manitoba
0C20592.56ADD1 - Quebec
0C20592.57ADD1- New Brunswick
0C20592.58ADD1- Nova Scotia
0C20592.59ADD1- Prince Edward Island
0C20592.5ADD2 - Ontario
0C20592.5NADD2 - Nunavut
0C20592.5TADD2 - Northwest Territories
0C20592.5YADD2 - Yukon
0C20592.50ADD2 - Newfoundland Labrador
0C20592.51ADD2 - British Columbia
0C20592.52ADD2 - Alberta
0C20592.53ADD2 - Saskatchewan
0C20592.54ADD2 - Manitoba
0C20592.56ADD2 - Quebec
0C20592.57ADD2 - New Brunswick
0C20592.58ADD2 - Nova Scotia
0C20592.59ADD2 - Prince Edward Island
0C20592.5 - Ontario
0C20529.5N - Nunavut
0C20592.5T - Northwest Territories
0C20592.5Y - Yukon
0C20592.50 - Newfoundland and Labrador
0C20592.51 - British Columbia
0C20592.54 - Manitoba
0C20592.57 - New Brunswick
0C20592.58 - Nova Scotia
0C20592.59 - Prince Edward Island
CSA-0C20592.56 - Quebec and Saskatchewan
License of Special Equipment (China) (TS)
TSX71000120220018
TS2700G39-2029
Pressure Equipment Directive (2014/68/EU)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
Data sheets
CR_7111_en.pdf
Operating Instructions
HEROSE-Manual-CR_7111-1
Delivery Times
The actual delivery time will be determined individually and is part of the order confirmation.
On Stock:
Out-Of Stock:
Delivery Time:
week(s)
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock:
Out-Of Stock
pcs
(ON STOCK)
Live Stock:
Delivery time (on stock):
Delivery time (off stock):
More Information
| Solution |
LNG, Air Gases |
| Solution Area |
Transport, Storage, Refueling |
| SKU |
CR_7111 |
Materials
Materials |
|
DIN EN |
ASTM |
1 |
Body |
CC491K |
C83600 |
2 |
Seal |
PTFE |
|
3 |
Pin |
1.4301 |
304 |
4 |
Cock plug |
CW614N |
C38500 |
5 |
Upper part |
CC491K |
C83600 |
6 |
Stem |
1.4301 |
304 |
7 |
Seal |
PTFE |
|
8 |
Gland packing |
Graphite / PTFE |
|
9 |
Disc spring |
1.4310 |
301 |
10 |
STB screw |
CW614N |
C38500 |
11 |
Screw |
1.4301 |
304 |
12 |
Lever |
1.4308 |
CF8 |
13 |
Disc spring |
1.4568 |
631 |
14 |
Spring |
Cu |
C11000 |
Versions

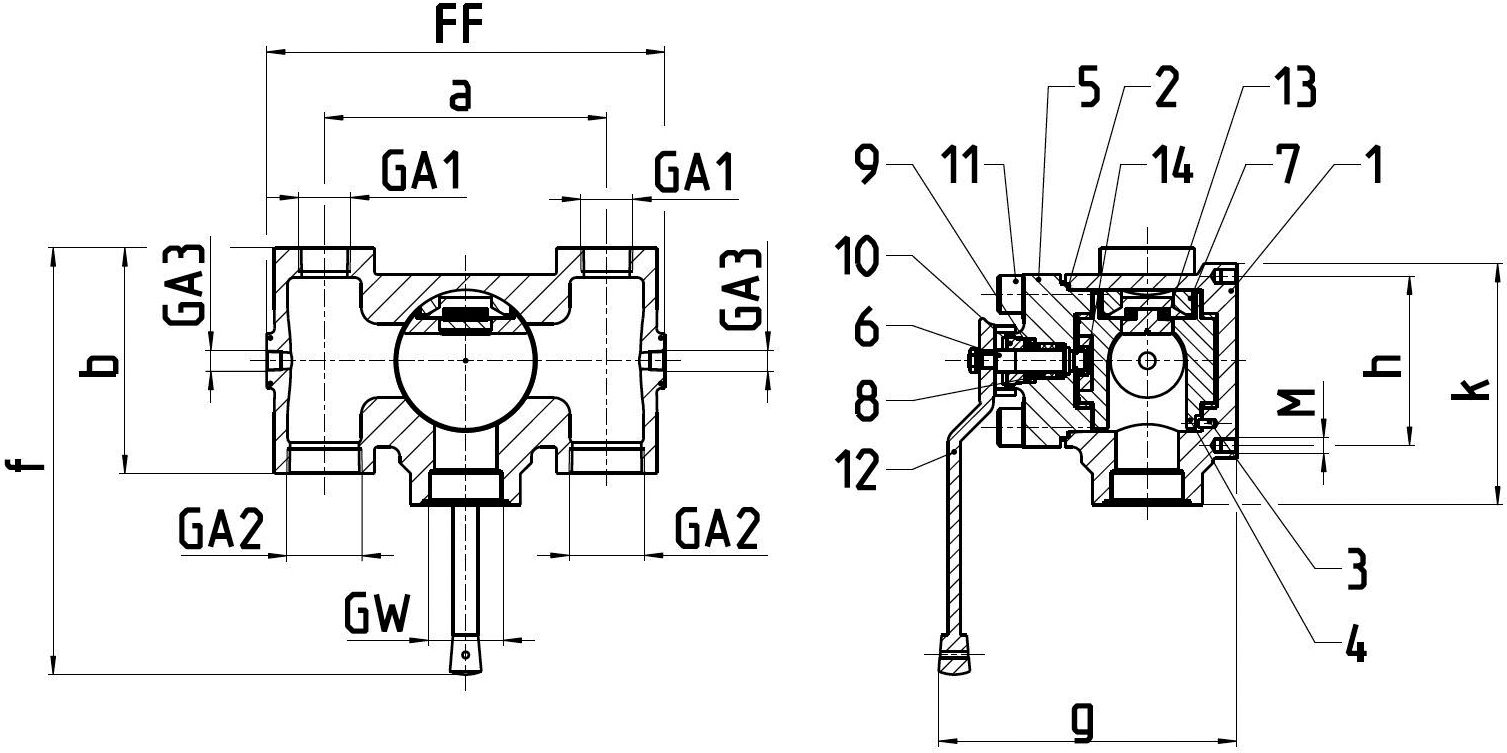

Type 7111 - Standard design |
Technical Data |
|
|
|
|
|
|
Nominal Size |
DN |
32 |
32 |
32 |
32 |
32 |
32 |
Dimension code |
.X. |
FN14000.
D3001 |
FN12000.
D3002 |
FN10000.
D3003 |
FG14000.
D3005 |
FG12000.
D3006 |
FG10000.
D3007 |
Inlet |
GW |
1-1/2 NPT |
1-1/4 NPT |
1 NPT |
1-1/2 G |
1-1/4 G |
1 G |
Outlet |
GA1 |
1 |
3/4 |
1/2 |
1 |
3/4 |
1/2 |
Outlet |
GA2 |
1 |
3/4 |
1/2 |
1 |
3/4 |
1/2 |
Test connection |
GA3 |
1/4 |
1/4 |
1/4 |
1/4 |
1/4 |
1/4 |
Face-to-face dimension |
FF |
180 |
180 |
180 |
180 |
180 |
180 |
Length |
a |
125 |
125 |
125 |
125 |
125 |
125 |
Height |
b |
94 |
94 |
94 |
94 |
94 |
94 |
Length |
f |
247 |
247 |
247 |
247 |
247 |
247 |
Length |
g |
154 |
154 |
154 |
154 |
154 |
154 |
Length |
h |
82 |
82 |
82 |
82 |
82 |
82 |
Length |
k |
113 |
113 |
113 |
113 |
113 |
113 |
Weight |
ca. kg |
5.6 |
5.6 |
5.6 |
5.6 |
5.6 |
5.6 |
Kvs - Value, one side open |
m³/h |
22.8 |
16.0 |
10.0 |
22.8 |
16.0 |
10.0 |
Cv - Value, one side open |
gal /min |
26.5 |
18.6 |
11.6 |
26.5 |
18.6 |
11.6 |
Kvs - Value, both sides open |
m³/h |
43.7 |
33.0 |
20.0 |
43.7 |
33.0 |
20.0 |
Cv - Value, both sides open |
gal /min |
50.8 |
38.4 |
23.3 |
50.8 |
38.4 |
23.3 |
