Type 06218, Type 06219

Datasheet ID: IN_06218_06219
Field of application chevron-down

Applications:

Provided as safety device for protection against excessive pressure in stationary

and moveable gas cylinders and pressure vessels. Approved for air and similar gases.

Working temperature: -60°C / -76°F (213K) up to +150°C / +302°F (423K), suitable for horizontal installation

Description chevron-down

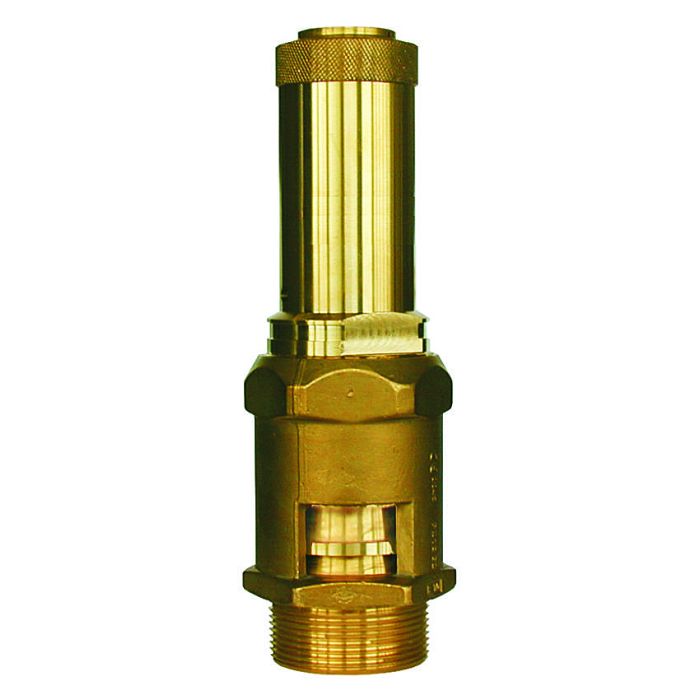

Safety Valves, brass,

type tested TÃœV-SV.1090. S/G

Full lift safety valve

with PTFE O-Ring valve seal,

open bonnet, with discharge holes

Inlet: male thread type G (BSPP) acc. to ISO 228/1

Part No. 06218.0600.0000

Part No. 06219.0600.0000

with lifting device

Available options - on request only:

· external parts nickel plated

Certificates chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
License of Special Equipment (China) (TS) chevron-down
TÜV Verband (Approval mark number) chevron-down
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Operating Instructions chevron-down
Declarations of Conformity chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
More Information
Type (Series) 06218,06219
Solution Air Gases
Solution Area Storage, Processes
SKU IN_06218_06219

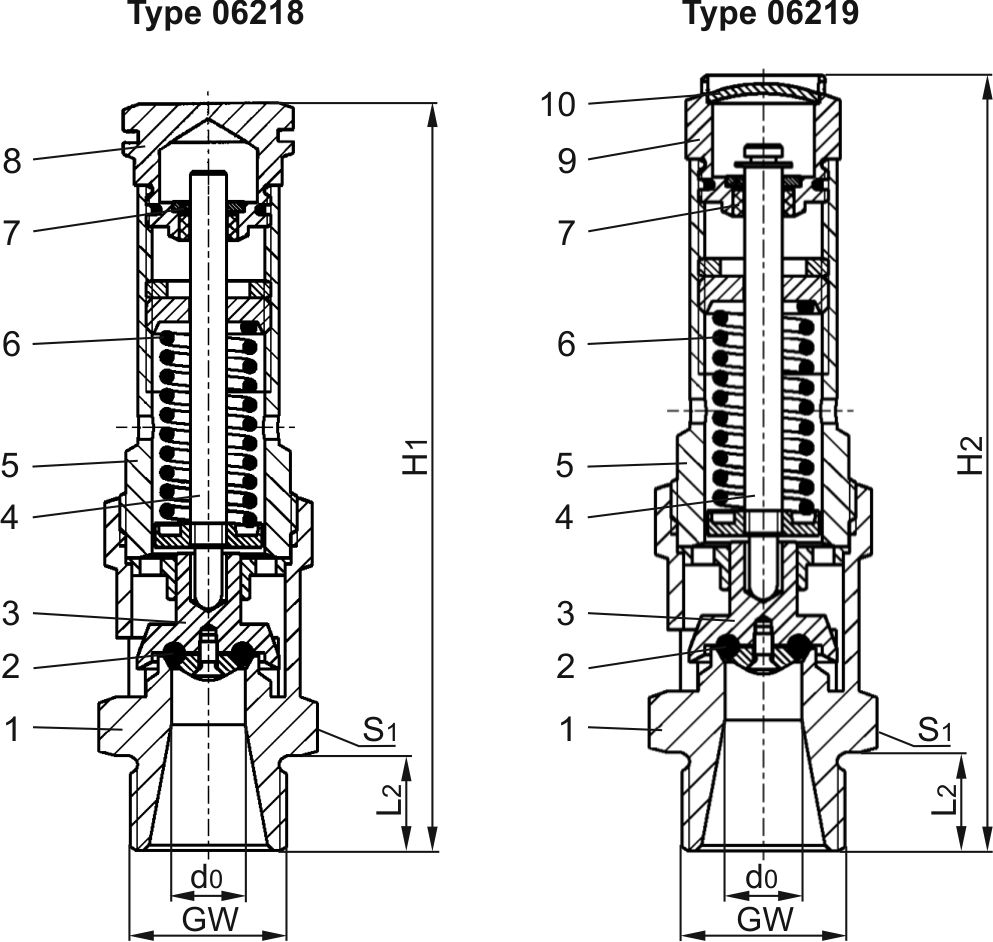

Materials

Materials

DIN EN

ASME/ASTM

1

Body

CW617N

EN 12165

2

Valve seal

PTFE O-Ring

3

Disc

CW614N

EN 12164

4

Stem

CW614N

EN 12164

5

Bonnet

CW614N

EN 12164

6

Spring

1.4571

A 313 Grade 316Ti

7

Stem guide

PTFE

8

Cap

CW614N

EN 12164

9

Lifting device

CW614N

EN 12164

10

Closing cap

CW507L

B 36 UNS C26800
Versions

Type 06218 & 06219

Technical data

Nominal size

GW

3/4

Orifice

d0

12.5

Set pressure range

bar

3.5-17.0

Height

H1

121.5

Height

H2

126

Length

L2

16

Wrench size across flats

S1

32

Weight

ca. kg

0.40

Coeff. of discharge

αw

0.75
