HEROSE Type 01420 - Globe Valve

The product shown in the picture may differ from the product sold.

Type 01420 - Globe Valve

Datasheet ID: CR_01420

Field of application

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description

Top Entry Cryogenic-Globe Valves, PN50 (DN100=PN40)

Stainless steel body and topwork,

"¦live loaded¦" gland packing

"¦cleaned and degreased for oxygen service¦"

Part No. 01420.X.0*81

Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Available options - on request only:

· Extension H and E acc. to customer specification

· Valve with check disc

Certificates

ClassNK (Class Rules)

TA22155M

DNV (Class Rules)

TAP00000MM Rev. 3

BV (Class Rules)

33354/C0 BV

SMS.W.I./11744/C.0

Pressure Equipment Safety Regulation 2016 (PESR 2016)

0879-PESR-DD1-23290-4-DE

RINA (Class Rules)

MAC322723XG

Pressure Equipment Directive (2014/68/EU)

0045/202/1201/Z/00366/23/D/001(00)

Transportable Pressure Equipment Regulation 2009 (TPER 2009)

0038/UK/TPER/MUM/PRJ11100534357/2

0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04

Transportable Pressure Equipment Directive (2010/35/EU)

0343/TPED/MUM/PRJ11100534357/3

0343/TPED/MUM/PRJ11100427971/4 Iss. 02

ABS (Class Rules)

25-0381115-PDA

092776-7471959-006

Ukraine (Ukraine)

UA.276.127.03-26

UA.D.127.04-26

Data sheets

CR_01420_2_en.pdf

CR_01420_3_en.pdf

CR_01420_en.pdf

Operating Instructions

HEROSE-Manual-CR_01420-1

Declarations of Conformity

Pressure Equipment Safety Regulation 2016 (PESR 2016)

002TTV (EN)

Pressure Equipment Directive (2014/68/EU)

002TTV (DE, EN, CN)

002TTV (DE, EN, CZ)

002TTV (DE, EN, ES)

002TTV (DE, EN, FR)

002TTV (DE, EN, IT)

002TTV (DE, EN, NL)

002TTV (DE, EN, PL)

002TTV (DE, EN, RU)

More Information
Materials
Versions
Product Variants

More Information

Type (Series)	01420
Solution	LNG, Air Gases
Solution Area	Transport, Storage, Refueling, Processes
SKU	CR_01420

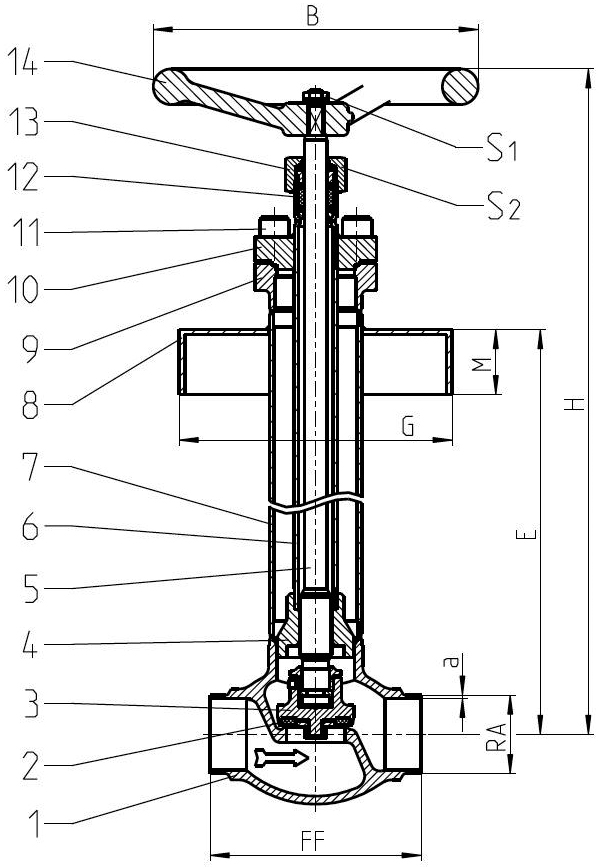

Materials

Materials		DIN EN	ASTM
1	Body	1.4308	A 351 CF8
2	Valve seal up to DN50	PTFE / Carbon filled (25%)
2a	Valve seal from DN65	PTFE
3	Disc	1.4301	A 276 Grade 304
4	Guide bush	CW453K	B 103 UNS C52100
5	Stem	1.4301	A 276 Grade 304
6	Elongation tube	1.4541	A 213 TP 321
7	Elongation tube	1.4541	A 213 TP 321
8	Cold box feature	1.4301	A 276 Grade 304
9	Headpiece flange	1.4301	A 276 Grade 304
10	Headpiece	1.4301	A 276 Grade 304
11	Bolts	1.4301/A2	A 193 B8
12	Gland packing	Graphite / PTFE / MICA
13	Gland nut	1.4404	A 276 Grade 316L
14	Handwheel	Aluminium alloy

Versions

Type 01420 - Standard design	Technical data
Nominal size	DN	10	15	20	25	40	50	65	80	100
Dimension code	.X.	1013	1521	2026	2533	4048	5060	6573	8088	0114
Face-to-face dimension	FF	70	85	100	115	130	155	205	245	280
Height	H	690	690	690	690	710	780	790	840	960
Handwheel-Ø	B	100	100	100	100	200	200	250	315	315
Outside pipe -Ø ASTM A312	RA	13.50	21.34	26.67	33.40	48.26	60.33	73.02	88.90	114.30
Wall thickness pipe ASTM A312	a	dimensions acc. to S10 or S40
Length	A	540	540	540	540	540	610	610	640	750
Length	G	acc. to customer specification
Length	M	acc. to customer specification
Wrench size across flats	S₁	10	10	10	10	13	13	13	13	13
Wrench size across flats	S₂	27	27	27	27	32	32	41	41	41
Weight	ca. kg	4.0	4.0	4.8	5.1	9.1	11.5	19.6	26.9	37.4
Kvs-Value	m³/h	1.6	4.3	6.7	11.5	22.6	37.1	71.1	104.0	168.0
Cv-Value	gal/min	1.9	5.0	7.8	13.4	26.3	43.2	82.9	121.3	196.0
Stroke	mm	11	12	12	12	15	19	23	25	30
