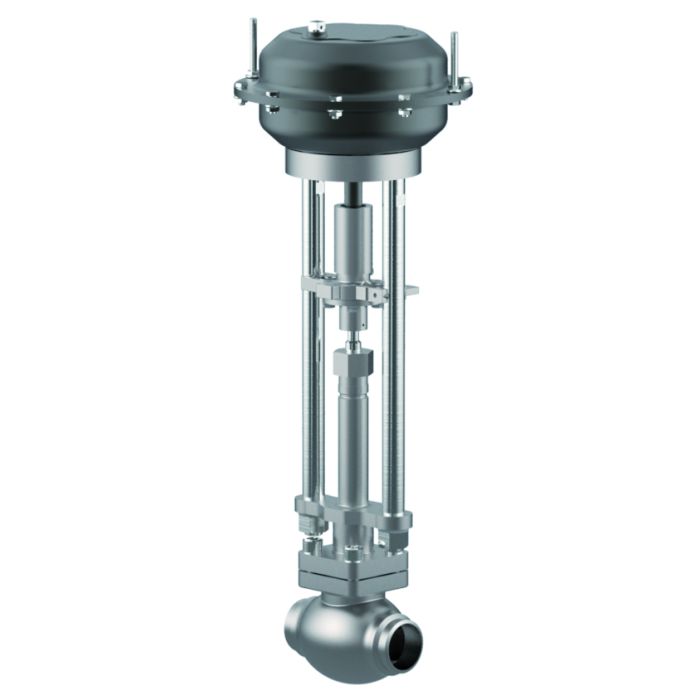

Type 01343 - Actuated Control Valve

Datasheet ID: CR_01343
Field of application chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description chevron-down

Cryogenic-Control Valves with Pneumatic Actuator, PN50

Control characteristic: linear or equal percentage

Stainless steel body and topwork

Actuator - air opens, spring closes or contrary

"¦live loaded¦" gland packing

"¦cleaned and degreased for oxygen service¦" - the actuator is not cleaned and

degreased for oxygen

Part No. 01343.X.*61*

Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Part No. 01343.X.*614

Socket weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Available accessories:

· Solenoid valve · Limit switch

· Electropneumatic positioner etc.

Available options - on request only:

· Welded stainless steel stubs acc. to ISO 1127 or ASTM A312 - length FF + 200mm

· Actuator “¦cleaned and degreased for oxygen sevice¦”

· Electric actuator

Certificates chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
Canadian Registration Number (CRN) chevron-down
ClassNK (Class Rules) chevron-down
License of Special Equipment (China) (TS) chevron-down
DNV (Class Rules) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
BV (Class Rules) chevron-down
RINA (Class Rules) chevron-down
CCS (Class Rules) chevron-down
ABS (Class Rules) chevron-down
25-0381115-PDA
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Declarations of Conformity chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
More Information
Type (Series) 01343
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_01343

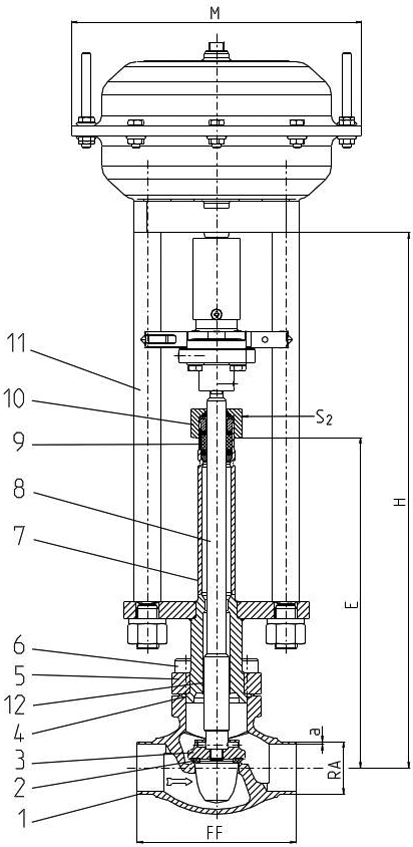

Materials

Materials

DIN EN

ASTM

1

Body

1.4308

A 351 CF8

2

Valve seal up to DN50

PTFE / Carbon filled (25%)

2a

Valve seal from DN65

PTFE

3

Disc

1.4301

A 276 Grade 304

4

Bonnet gasket

PTFE

5

Headpiece

1.4301

A 276 Grade 304

6

Bolts

1.4301/A2

A 194 B8

7

Elongation tube

1.4541

A 213 TP 321

8

Stem

1.4301

A 276 Grade 304

9

Gland packing

Graphite / PTFE / MICA

10

Gland nut

1.4305

A 276 Grade 303

11

Pillars

1.4404

A 276 Grade 316L

12

Bush

CW452K

B 159 UNS C51900
Versions

Type 01343 - Standard design

Technical data

Nominal size

DN

15

20

25

32

40

50

65

80

100

Dimension code

.X.

1521

2026

2533

3238

4048

5060

657x

8088

0114

Face-to-face dimension

FF

85

100

115

115

130

155

205

245

280

Height

H

370

370

375

405

420

425

510

575

635

Length

E

195

200

200

230

230

235

300

300

300

Outside pipe-Ø ISO 1127

RA

21.3

26.9

33.7

38.0

48.3

60.3

76.1

88.9

114.3

Wall thickness pipe ISO 1127

a

2.0

2.0

2.0

2.0

2.0

2.0

2.9

3.2

6.0

Outside pipe-Ø ASTM A312

RA

21.34

26.67

33.4

-

48.26

60.33

73.03

88.90

114.3

Wall thickness pipe ASTM A312

a

dimensions acc. to S10 or S40

Socket depth

b

10

13

13

-

13

16

16

16

20

Actuator-Ø

M

Wrench size across flats

S2

30

30

30

36

36

36

36

36

41

Weight w/o actuator

ca. kg

2.2

2.4

3.1

3.8

6.5

9.0

15.2

20.0

28.0

Stroke

mm

20

20

20

30

40

30

40

40

40
?
