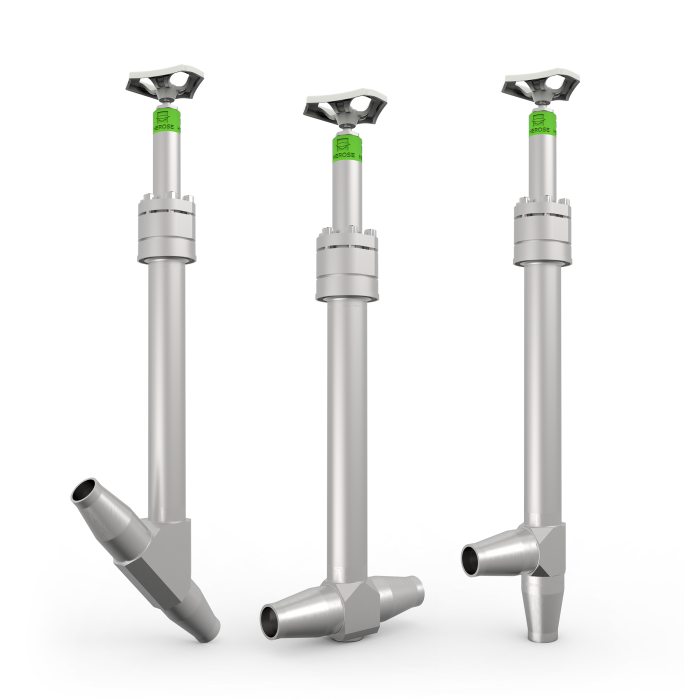

Type 11C01 - Globe Valve FullX
The product shown in the picture may differ from the product sold.
Field of application
Applications:
Approved for hydrogen, air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -269°C / -452°F (4K) up to +80°C / +176°F (353K)
Description
Top-Entry Cryogenic-Globe Valves, solid bar stock body, up to PN63
A001 series
Stainless steel body and topwork,
"¦live loaded¦" gland packing
"¦cleaned and degreased for oxygen service¦"
Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312
Available options:
· Bellow, top position
· Bellow, bottom position
· Bellow monitoring
· Check function
· Control function
· Throttle function
· Purge port
- on request only:
· Further connection types
Certificates
BV (Class Rules)
ClassNK (Class Rules)
DNV (Class Rules)
RINA (Class Rules)
Pressure Equipment Directive (2014/68/EU)
Transportable Pressure Equipment Directive (2010/35/EU)
Transportable Pressure Equipment Regulation 2009 (TPER 2009)
CCS (Class Rules)
Lloyd's Register (Class Rules)
Data sheets
Operating Instructions
Declarations of Conformity
Transportable Pressure Equipment Regulation 2009 (TPER 2009)
Transportable Pressure Equipment Directive (2010/35/EU)
Pressure Equipment Directive (2014/68/EU)
Live Stock: Out-Of Stock pcs (ON STOCK)
| Type (Series) | 11C01 |
|---|---|
| Solution | H2, LNG, Air Gases |
| Solution Area | Manufacturing, Transport, Storage, Refueling, Processes |
| SKU | CR_11C01 |
Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Body |
1.4571 |
A 313 Grade 316TI |
2 |
Valve seal |
PCTFE |
|
3 |
Disc |
1.4571 |
A 313 Grade 316TI |
4 |
Tube |
1.4571 |
A 313 Grade 316TI |
5 |
Hollow stem |
1.4571 |
A 313 Grade 316TI |
6 |
Flange |
1.4404 |
A 276 Grade 316L |
7 |
Bonnet gasket |
PTFE / Elektrocarbon (25%) |
|
8 |
Bushing |
CW452K |
B 159 UNS C51900 |
9 |
Bolt |
A4-70 |
A 194 B8M |
10 |
Nut |
1.4404 |
A 276 Grade 316L |
11 |
Head piece |
1.4404 |
A 276 Grade 316L |
12 |
Ball bearing |
1.4125 |
440C |
13 |
Sliding bushing |
CW452K |
B 159 UNS C51900 |
14 |
Stem ring |
CW452K |
B 159 UNS C51900 |
15 |
Gasket |
PTFE / Elektrocarbon (25%) |
|
16 |
Cap |
PVC |
|
17 |
Gland bold |
1.4404 |
A 276 Grade 316L |
18 |
Wiper |
PEEK |
|
19 |
Stem |
1.4404 |
A 276 Grade 316L |
20 |
Handwheel |
1.4409 |
A 351 CF3M |
21 |
O-ring |
FPM (VITON) |
Nominal size |
DN |
10 |
15 |
20 |
25 |
32 |
40 |
50 |
|---|---|---|---|---|---|---|---|---|
Collar-Ø |
G |
68.0 |
68.0 |
68.0 |
68.0 |
84.4 |
84.4 |
100 |
Length |
M |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
Handwheel-Ø |
B |
100 |
100 |
100 |
100 |
125 |
125 |
125 |
Outside pipe-Ø ISO |
Ra |
17.2 |
21.3 |
26.9 |
33.7 |
42.4 |
48.3 |
60.3 |
Wall thickness pipe ISO |
a |
1.8 |
2.0 |
2.3 |
2.6 |
2.6 |
2.6 |
2.9 |
Pipe-Ø ASTM A312 |
␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣S10 |
